Description
F25-10S ( 10 Pushbuttons single speed) F25-10D ( 10 Pushbuttons double speeds)
- Emergency STOP control complies with EN ISO 13849-1 (PL=d)
- Durable casing with extra shock resistance
- Programmable function setting, optimum flexibility for all kinds of industrial applications
- Remote Pairing technology, allowing instant maintenance on-site
- Pre-wiring standard cable for quick and easy installation
- Built-in receiver Alarm/Horn saves the cost of installing extra warning devices

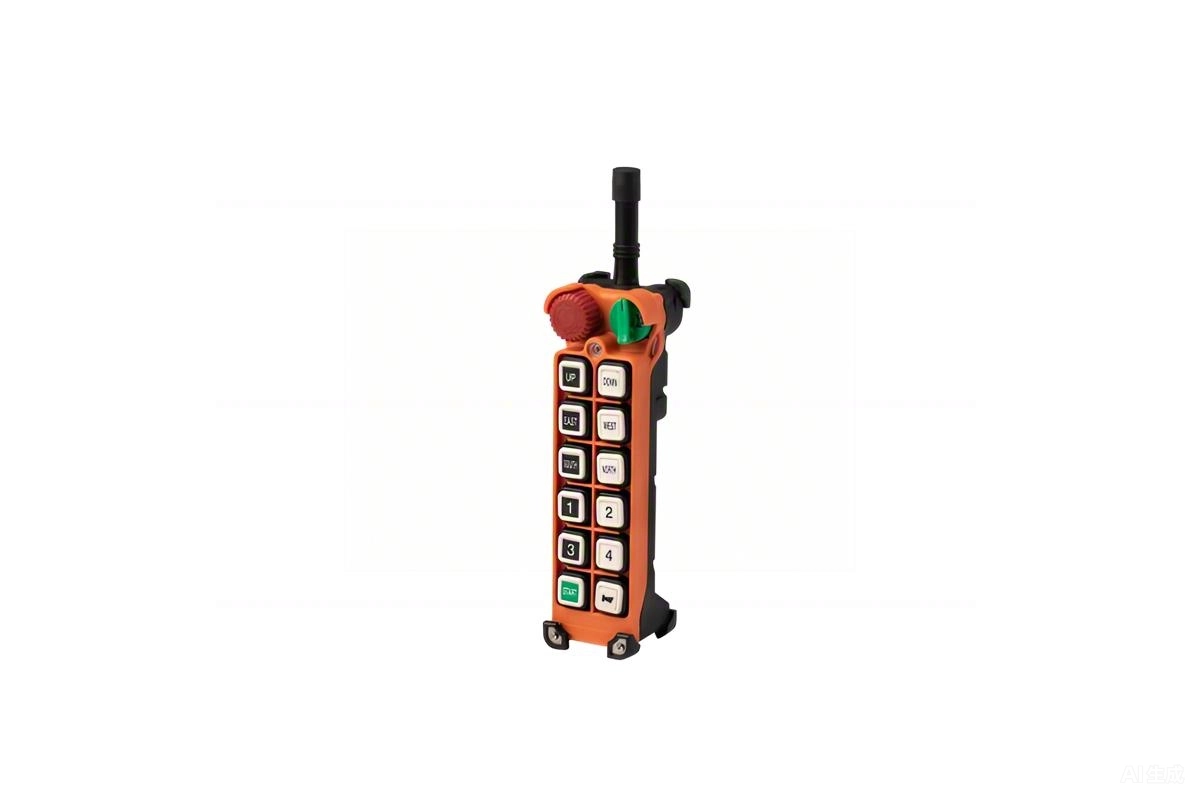

Transmitter- Dimension: 186 x 61 x 51 mm
- Weight: 250 g (w/o batteries)
- Power: 4 AA batteries, Alkaline / rechargeable acceptable

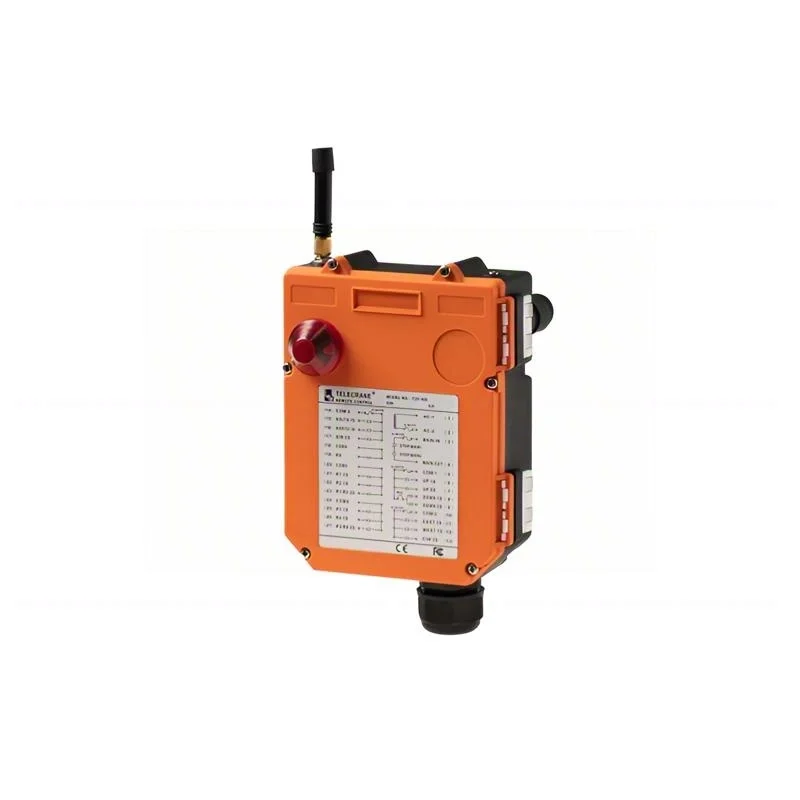

Receiver
- Dimension: 200 x 162 x 107 mm
- Weight: 1550 g (w/o wire cable)
- Power Supply: 24/48/110/220/380 VAC / 12~24 VDC
About the F25-10S /10d Remote Controllers
The F25-10S from Trunsin is a rugged industrial remote control system for industrial machinery and HMI control panels. Designed for reliable wireless operation in demanding plants and outdoor sites, the F25-10S helps operators command hoist, travel, and auxiliary functions with clear tactile feedback and configurable pushbutton layouts.
Trunsin supports F25-10S integration with your receiver architecture, voltage class, channel mapping, and enclosure strategy. Our team can review duty cycle, antenna placement, and emergency-stop logic so the F25-10S fits crane, hoist, and mobile machinery control standards.
Typical applications
- Overhead cranes and hoists that need reliable wireless control
- Construction machinery with two to twelve discrete functions
- Material handling lines where the operator must move freely
- Mobile equipment that benefits from low-power, shock-resistant receivers
- Industrial automation cells that require configurable pushbutton layouts
- Outdoor installations with wide operating temperature requirements
Production follows in-house machining, assembly, and acceptance testing so each F25-10S leaves the factory with traceable quality records. If you need drawings, duty-cycle guidance, or signal interface recommendations for the F25-10S, contact sales@trunsin.com or request a configuration sheet with your target quantity.
Why source the F25-10S from Trunsin
- Factory-direct customization for handle, axis, output, and sealing options
- Experience across AWP, crane, marine, mining, and mobile machinery programs
- Configuration sheets and engineering support for OEM and aftermarket teams
- Consistent quality from vertically integrated machining and assembly
Related Trunsin models
Need a F25-10S quote or channel map? Browse the full product range or email Trunsin with your machine type and function list.
